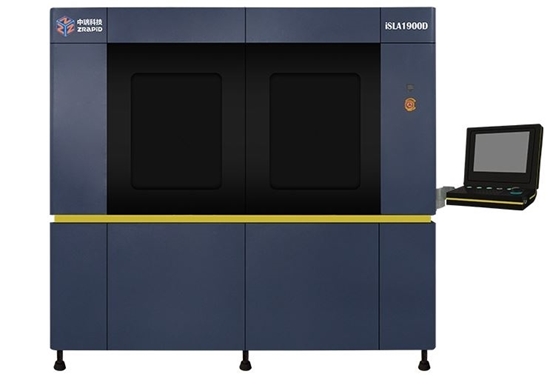

iSLA1900D

The iSLA1900D machine is an industrial-grade stereolithography (SLA) printer capable of printing extremely large plastic parts of high accuracy and detail. Ideal for plastic prints of large volumes for prototyping or casting.
3D Printing Technology
Stereolithography (SLA)

Machine Advantages

Machine Advantages The printer boasts cutting-edge features designed to optimize printing speed and quality. Its dynamic focus super-fast scanning style ensures rapid and precise printing, facilitating efficient production. With its large surface intelligent partitioning scanning capability, it can seamlessly handle larger print jobs with ease.

The printer employs a closed hot air system to heat photosensitive resin, maintaining optimal printing conditions and ensuring smooth, high-quality prints. Its granite integrated Z-axis lifting platform provides stability and accuracy during the printing process. Additionally, intelligent positioning and vacuum adsorption technology enable precise layering and material application, resulting in flawless prints.

Users can conveniently monitor and control the printer remotely through a dedicated app, receiving smart notifications and updates for enhanced convenience and efficiency.

Picture for category Machine Advantages

Printing in SLA (Stereolithography)

SLA is an additive manufacturing process that works by focusing a UV laser on a vat of photopolymer resin.

With the help of computer-aided manufacturing or computer-aided design (CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape onto the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object.

This process is repeated for each layer of the design until the 3D object is complete.

Picture for category Printing in SLA (Stereolithography)
Number of Laser Dual Laser
Laser Type Diode-pumped solid-state laser Nd:YVO₄
Laser Wavelength 354.7nm
Laser Power 1000/2000/3000mW
Process Intelligent positioning - Vacuum press recoat
Normal Build 0.1mm
Quick Build 0.1~0.15mm
Precision Build 0.05~0.1mm
Beam (diameter@1/e2) 0.10~0.16mm (Normal) 0.10~0.50mm (Super)
Scanning Galvanometer High Speed Scanning Galvanometer (Dual Galvanometer)
Parts Scanning Speed 6.0~20.0m/s (recommended)
Blank Jumping Speed 20.0~40.0m/s (recommended)
Reference Building Speed 150~500g/h (Super ×2 / Dual Laser)
Elevator Position Repeatability ±0.01mm
Elevator Motor High Accuracy Servo Motor
Benchmark Platform marble benchmark platform
Resin Vat Volume Approx. 1825L@800mm(Z)
XY Platform 1900mm(X)×1000mm(Y)
Z Axis 800mm(standard)/ <800mm(custom)
Max Weight 150kg@600mm(Z)
Resin Heated Style Precision resistor heater
Photopolymer Resin ZR680 (Accurate & White) ZR710 (Tough & White) ZR820 (High Transparency)
Network Ethernet, TCP/IP, IEEE802.3
Control Software iSLA (ZERO 5.0)
Data Preparation Software 3dLayer
Data Interface CLI file, SLC file, STL file
Power 200~240VAC 50/60Hz, single phase, 5 / 20Amps
Ambient Temperature 20-26ºC
Relative Humidity Less than 40%, non-condensing
Installation Condition Size 2.90m(W)×1.70m(D)×2.95m(H)(Operating computer is not included)
Installation Condition Weight Approx. 3500kg
Warranty Laser: 5000 hours or 12 months (whichever comes first) Main Machine: 12 months from installation date
