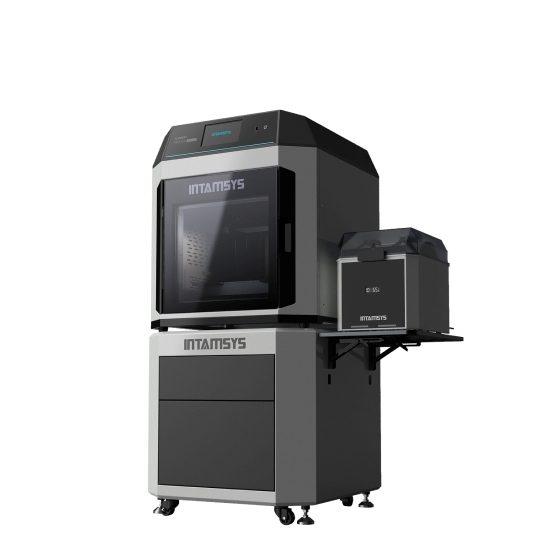

FUNMAT PRO 310 APOLLO

The FUNMAT PRO 310 APOLLO is an advanced industrial FFF 3D printer designed for high-performance materials, fast production, and consistent print quality. From PEEK prototyping to manufacturing durable PAEK end-use parts, INTAMSYS delivers reliable, production-ready additive manufacturing for demanding industrial applications.
Available upon request
3D Printing Technology
FFF - FDM
Build Volume
Single: 305 x 260 x 260mm
Build Volume
Dual: 260 x 260 x 260mm
Layer Thickness
0.1 - 0.3mm

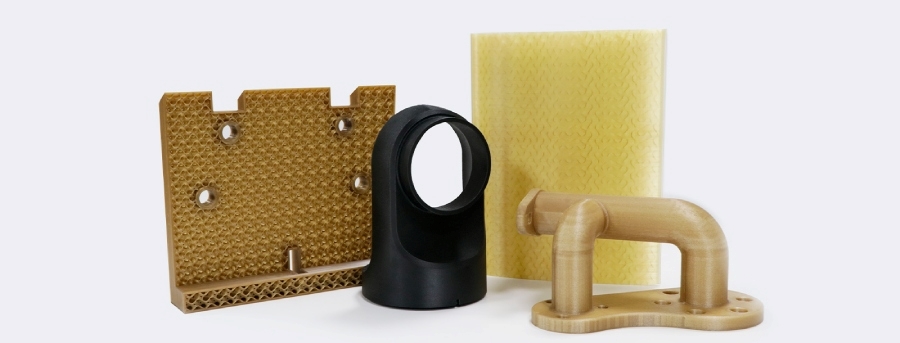

High-Performance Material Printing

Supports the complete PAEK material family, delivering up to 2× higher Z-axis mechanical strength and tensile strength above 40 MPa. Designed for dependable performance under high temperatures and mechanical loads, it is well suited for demanding aerospace and medical applications.

Picture for category Εκτύπωση Υλικών Υψηλών Επιδόσεων

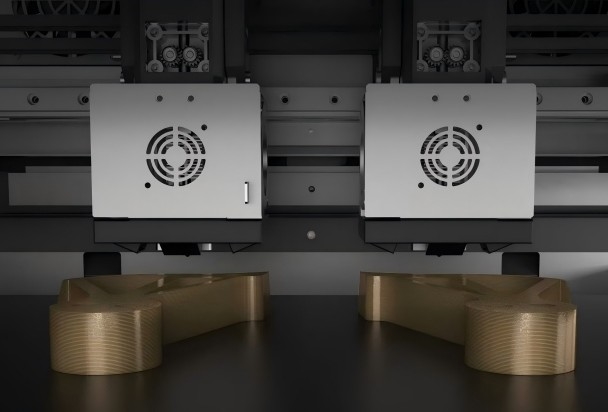

High-Speed Printing System

Dual independent extruders engineered for PAEK materials deliver printing speeds of up to 200 mm/s, achieving performance up to 4× faster than conventional 3D printers. This combination of high-speed FFF printing and strong mechanical properties helps reduce lead times and increase productivity for industrial-scale production.

Picture for category Σύστημα Εκτύπωσης Υψηλής Ταχύτητας

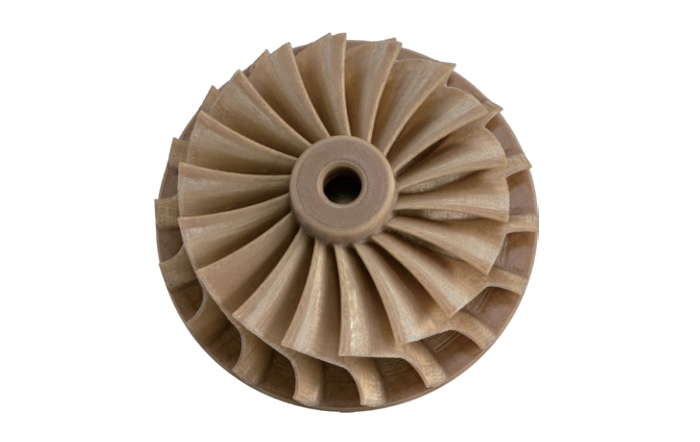

Continuous Production Solution

Designed for continuous industrial 3D printing, the system features a 3 kg actively dried filament chamber and INTAMQuality data monitoring. It supports week-long uninterrupted printing, complete process traceability, and reliable performance when working with high-temperature materials.

Picture for category Λύση Συνεχούς Παραγωγής

Intelligent Control Platform

Powered by INTAMSUITE NEO, the system integrates intelligent control of temperature, material flow, and print paths for optimized FFF performance. Smart monitoring and remote management ensure stable, efficient, and predictable high-performance printing.

Picture for category Έξυπνη Πλατφόρμα Ελέγχου
Number of Print Heads 2 (IDEX)
Maximum Nozzle Temperature 450 °C
Maximum Print Speed 500mm/s PAEK: 200mm/s
Maximum Printing Acceleration 8000mm/s2
Maximum Chamber Temperature 100 °C
Max Heatbed Temperature 160 °C
Leveling Mesh Leveling (Max.100 Points) Dual-extruder auto calibration
Filament Diameter 1.75mm
Available Printing Materials PEEK, PEEK-CF/GF, PEKK, VICTREX AM 200 FIL, VICTREX AM 450 FIL, PC, PC-ABS, PC-FR, ABS-HS, PPA-CF/GF, PA6/66, PA12, ASA, PPS, PPS-CF/GF, and various fiber-reinforced and support materials
Functions Nozzle clogging alarm, platform over-temperature alarm, filament run-out detection, printing recovery from power loss, remote monitoring, remote control, remote printing, software and hardware OTA, filament auto-loading, material Identification, auto-cleaning nozzles, INTAMQualityTM
Voltage 100-120V/16A or 200-240V/8A 50-60Hz
Maximum Power 1800W
Connectivity WiFi, Ethernet, USB
Touchscreen 7-inch Touch Screen
Print Surface Magnetic thickened hardened buildplate Magnetic flexible buildplate
Build Chamber Fully enclosed heated chamber
Nozzle Maintenance Modular design for fast maintenance and quick replacement
Cooling Fan
Filament Box 3 kg sealed chamber with reusable molecular sieve, real-time temp/humidity monitoring, and 65°C internal heating
Number of Spools 2 (Max. 3 kg/pcs)
Resolution XY:16 μm, Z:1.25 μm
HEPA Air Filtration HEPA + Activated Carbon, Replaceable
Dimensions 700 x 655 x 750mm
Safety Safety door lock, over temperature protection, overload protection, warning labels
Slicing Software INTAMSUITE NEO
Supported File Types .stl/.3mf/.obj/.x3d/.g/oltp/.stp/ .step/.iges
Operating System Windows 10/11
Working Temperature 0°C ~ 30°C (32°F ~ 86°F)
Working Humidity 20% ~ 70%
Storage Temperature -20°C ~ 55°C ( -4°F ~ 131°F)
Storage Humidity 10% ~ 90%
