SLA

If you’re looking for a smooth surface and high precision models, resin technology (such as Figure 4, DLP, SLA) is for you.



This 3D printing process works by hardening layer after layer of a liquid resin. When exposed to a source of light, the photopolymer cures, hardening and linking to the previous layer. Following each layer, a recoater wipes new material on the surface, in preparation for the next layer to be cured.



Similar to FDM, if your model has overhangs, you’ll need to print a supporting structure. As this structure consists of the same material as the model, it has to be mechanically removed.



Unlike FDM, the entire model consists of full material strength. With resin technology you can 3D print elastic and transparent plastics, casting wax and models with very high surface quality.



Within the realm of SLA 3D printing is digital light processing (DLP + Figure 4). It is essentially the same as SLA but uses a projector as a light source instead of a laser. The primary difference is that DLP printing can be faster, given that an entire layer can be exposed to UV light at once.



Figure 4 is the newest generation of resin technology, capable of printing in high speed, with high accuracy and detail up to 10 microns. It offers repeatablity, in materials for various applications, with mechanical properties, such as ABS and PP, high temprature, biocompatible, and end use parts.

Display per page

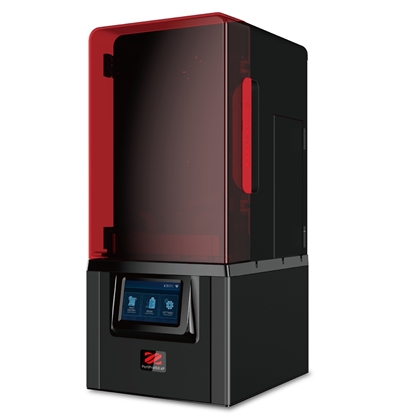

PartPro150 xP is an affordable desktop SLA 3D printer which produces high quality parts using a wide variety of materials.
From 2.800,00 €
Available
Logo of the manufacturer of: PartPro150 xP
3D Printing TechnologyStereolithography (SLA)
Build Volume150 x 150 x 200 mm
Layer Height25 - 100 microns
Product Weight9,6 kg

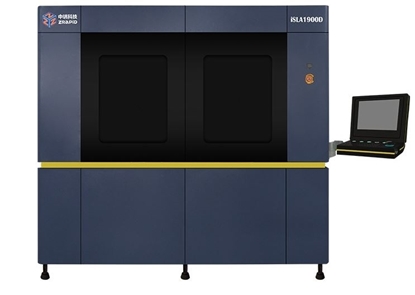

The iSLA1900D machine is an industrial-grade stereolithography (SLA) printer capable of printing extremely large plastic parts of high accuracy and detail. Ideal for plastic prints of large volumes for prototyping or casting.
Call for pricing
Logo of the manufacturer of: iSLA1900D
Build Volume1900 x 1000 x 800 mm (custom <800)
Laser Power2 x 3000mW
Layer Height50 - 150 microns
Product Weight3500 kg
SLA (Stereolithography) is an additive manufacturing process that works by focusing a UV laser on a vat of photopolymer resin. With the help of computer-aided manufacturing or computer-aided design(CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape onto the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object. This process is repeated for each layer of the design until the 3D object is complete.
Call for pricing
Logo of the manufacturer of: iSLA660
3D Printing TechnologyStereolithography (SLA)
Build Volume600mm(X)x600mm(Y)x300mm(Z)

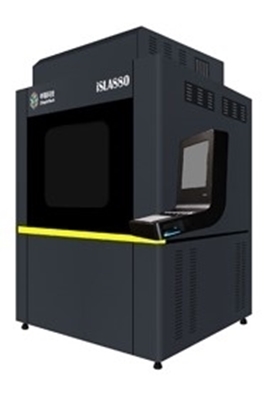

The iSLA880 machine is an industrial-grade stereolithography (SLA) printer capable of printing extremely large plastic parts of high accuracy and detail. Ideal for plastic prints of large volumes for prototyping or casting.
Call for pricing
Logo of the manufacturer of: iSLA880
Build Volume800 x 800 x 550 mm
Laser Power3000mW
Layer Height50 - 150 microns
Product Weight1000kg
SLA (Stereolithography) is an additive manufacturing process that works by focusing a UV laser on a vat of photopolymer resin. With the help of computer-aided manufacturing or computer-aided design(CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape onto the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object. This process is repeated for each layer of the design until the 3D object is complete.
Call for pricing
Logo of the manufacturer of: iSLA550
