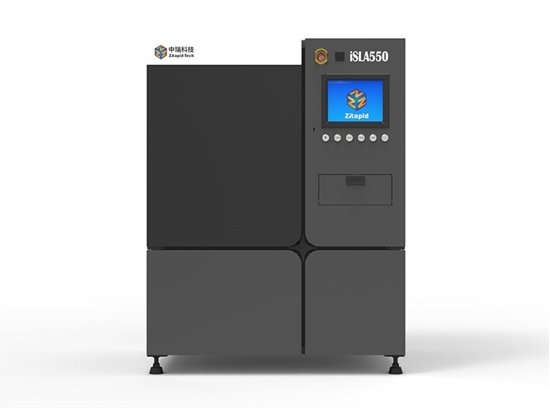

Product Specifications
Full Specifications
LASER SYSTEM
Type: Diode-pumped solid-state laser Nd: YVO₄
Wavelength: 354.7nm
Power: 1000/2000/3000mW
RECOATING SYSTEM
Process: Intelligent positioning - Vacuum press recoat
Normal Build: 0.1mm
Quick Build: 0.1~0.15mm
Precision Build: 0.05~0.1mm
OPTICAL & SCANNING
Beam: (diameter@1/e2)0.10~0.50mm
Scanning Galvanometer: High-Speed Scanning Galvanometer
Parts Scanning Speed: 6.0m/s (recommended)
Blank Jumping Speed: 10.0m/s (recommended)
Reference Building Speed: 50~140g/h
ELEVATOR
Position repeatability: ±0.01mm
Elevator Motor: High Accuracy Servo Motor
Benchmark Platform: marble benchmark platform
RESIN VAT
Volume: Approx. 115L@300mm(Z)
XY Platform: 500mm(X)×500mm(Y)
Z Axis: 300mm
Max Weight: 60kg@300mm(Z)
Resin heated style: Hot air
Photopolymer Resin: ZR680 (Accurate & White) ZR710 (Tough & White) ZR820 (High Transparency)
SOFTWARE
Network: Ethernet, TCP/IP, IEEE802.3
Control Software: iSLA(ZERO 5.0)
Data Preparation Software: 3dLayer
Data Interface: CLI file, SLC file, STL file
INSTALLATION CONDITION
Power: 200~240VAC 50/60Hz, single phase, 5 / 10Amps
Ambient Temperature: 20-26ºC
Relative Humidity: Less than 40%, non-condensing
Size: 1.45m(W)×1.05m(D)×1.85m(H)
Weight: Approx. 820kg
WARRANTY
Laser: 5000 hours or 12 months (whichever comes first)
Main Machine: 12 months from installation date
