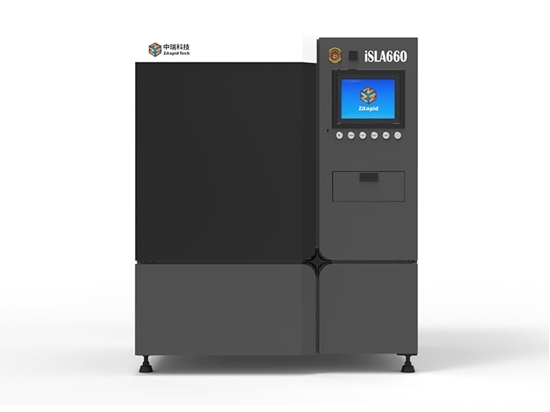

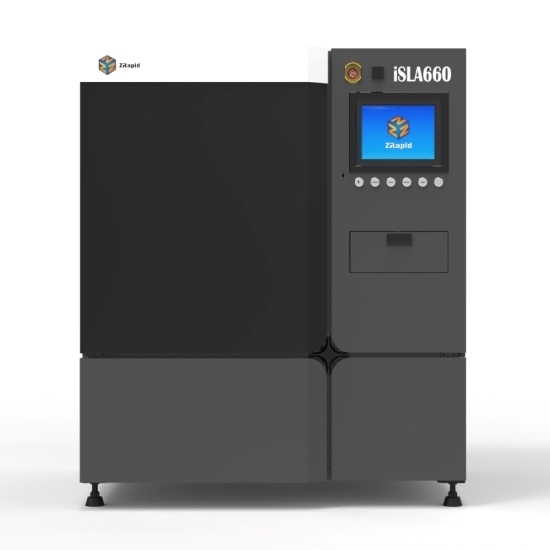

iSLA660

The iSLA660 is an SLA 3D Printer ideal for prototyping from ZRapid Technologies.
3D Printing Technology
Stereolithography (SLA)

Printing in SLA (Stereolithography)

SLA is an additive manufacturing process that works by focusing a UV laser on a vat of photopolymer resin.

With the help of computer-aided manufacturing or computer-aided design (CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape onto the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object.

This process is repeated for each layer of the design until the 3D object is complete.

Picture for category Printing in SLA (Stereolithography)
Laser Type Diode-pumped solid-state laser Nd:YVO₄
Laser Wavelength 354.7nm
Laser Power 1000/2000/3000mW
Process Intelligent positioning - Vacuum press recoat
Normal Build 0.1mm
Quick Build 0.1~0.15mm
Precision Build 0.05~0.1mm
Beam (diameter@1/e2) 0.10~0.50mm
Scanning Galvanometer High Speed Scanning Galvanometer
Parts Scanning Speed 6.0m/s (recommended)
Blank Jumping Speed 10.0m/s (recommended)
Reference Building Speed 50~180 g/h
Elevator Position Repeatability ±0.01mm
Elevator Motor High Accuracy Servo Motor
Benchmark Platform marble benchmark platform
Resin Vat Volume 200L@400mm(Z)
XY Platform 600mm(X)×600mm(Y)
Z Axis 400mm
Max Weight 80kg@400mm(Z)
Resin Heated Style Hot air
Photopolymer Resin ZR680 (Accurate & White) ZR710 (Tough & White) ZR820 (High Transparency)
Network Ethernet, TCP/IP, IEEE802.3
Control Software iSLA (ZERO 5.0)
Data Preparation Software 3dLayer
Data Interface CLI file, SLC file, STL file
Power 200~240VAC 50/60Hz, single phase, 5 / 10Amps
Ambient Temperature 20-26ºC
Relative Humidity Less than 40%, non-condensing
Installation Condition Size 1.60m(W)×1.30m(D)×1.90m(H)
Installation Condition Weight Approx. 900kg
Warranty Laser: 5000 hours or 12 months (whichever comes first) Main Machine: 12 months from installation date
