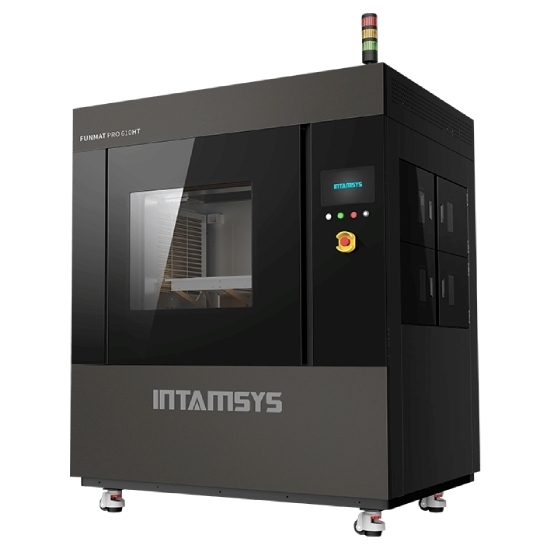

Picture of FUNMAT PRO 610HT

FUNMAT PRO 610HT

The INTAMSYS FUNMAT PRO 610HT is an advanced industrial FFF 3D printer engineered for demanding high-performance thermoplastics. Designed for reliable, high-quality additive manufacturing, it enables the production of strong, accurate parts for challenging industrial applications.
Available upon request
Request a quote
3D Printing Technology
FFF - FDM
Build Volume
610 x 508 x 508mm
Layer Thickness
0.15mm, 0.2mm, 0.25mm
Number of Print Heads
2
Description

Overview

The FUNMAT PRO 610HT is a large-format industrial FFF 3D printer designed to process a wide range of high-performance thermoplastics. Featuring dual extruders with temperatures up to 500°C and a heated build chamber reaching 300°C, it delivers reliable, repeatable results for demanding applications. With a generous 610 × 508 × 508 mm build volume, the system is well suited for producing large, high-performance parts across industries such as automotive, aerospace, and oil & gas.

Picture for category Επισκόπηση
Number of Spools 4 (Max 3 kg/pc)
Filament Diameter 1.75mm
Maximum Print Speed 160mm/s
Nozzle Diameter Default: 0.4mm (Optional: 0.6/0.8mm)
Maximum Nozzle Temperature 500 °C
Maximum Chamber Temperature 300 °C
Maximum Filament Chamber Temperature 50 °C
Available Printing Materials PEI 9085, PEI 1010, PEEK, PEEK-CF, PEEK-GF, PEKK, PPSU, PPS, PC, PC-ABS, PPA-CF, PPA-GF, PA6/66, PA6-CF, PA12, PA12-CF, ABS+, ABS, ASA, etc
Functions Auto-cleaning Nozzles, Filament Auto-reloading, Filament Jam Warning, Filament Absence Warning, Remote Control, Remote Printing
Voltage 3P 380V 30 A/phase, 50 ～ 60Hz or 3P 200V 50 A/phase, 50 ～ 60Hz
Maximum Power 15kW
Connectivity WiFi, Ethernet, USB
Touchscreen 10” Touch Screen
Print Surface Flexible Buildplates with Vacuum Adsorption System
Build Chamber Fully Enclosed Printing Chamber
Motor System Servo Control System with High Precision Ball Screw
Cooling Liquid Cooling System & Fan
Filament Box Independent Sealed Chambers, with Active Heating and Dry Compressed Air (External Air Compressor Is Required), Keep Filament Dry During Printing, Auto Filament Feeding
Maximum Travel Speed XY: 400mm/s, Z: 50mm/s
Dimensions With Warning Lights: 1710 x 1425 x 2350mm
Product Weight 1450kg
Safety Independent Safety PLC, Electromagnetic Safety Door Lock, Over-temperature Protection, Overload Protection, Emergency Stop Button, Double-layer Thickened Heat-insulated Front Door, Heat-resistant Shield, Three-color Warning Light.
Safety Standards EN60204
Certification CE, FCC, SGS
Slicing Software INTAMSUITE NEO
Supported File Types .stl/.3mf/.obj/.x3d/.g/oltp/.stp/ .step/.iges
Operating System Windows 10/11
Working Temperature 15 °C ～ 30 °C
Working Humidity 30 ～ 70 %
Storage Temperature -10 °C ～ 54 °C
Storage Humidity 10 ～ 85 %
