Sorry - this product is no longer available

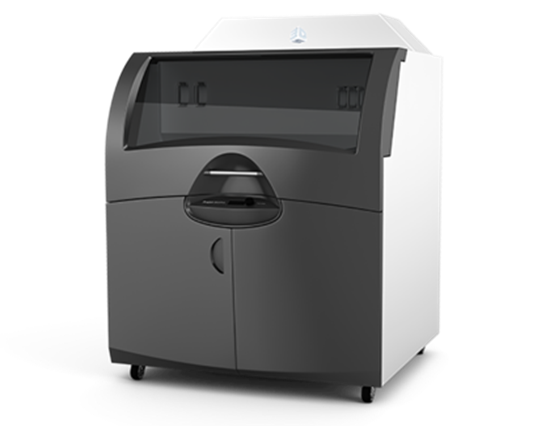

ProJet CJP 860Pro

The ProJet CJP 860Pro is our most productive professional CMYK full-color 3D printer, featuring our largest build volume and highest resolution. Print higher volume or large-scale concept models with ease at every stage of design and development to quickly and affordably explore more design options, obtain feedback, refine and repeat the cycle until designs are perfect, reducing costly changes later in the process.
Call for pricing
3D Printing Technology
Full Color (CJP)
Build Volume
508 x 381 x 229 mm
Layer Height
0.1 mm
Material Compatibility
VisiJet PXL

OVERVIEW

Photorealistic Color

The full color CMYK ProJet CJP 860Pro has five print heads for vibrant, realistic color printing to better evaluate your design intent in the colors you had specified. It delivers the best range of accurate and consistent colors, including gradients, by using cyan, magenta, yellow and black binders to print onto a white powder. Colors can be placed anywhere on the model and be printed using full texture maps and UV mapping.

High Throughput

With up to 5x–10x faster print speeds than other technologies, you can build large or multiple models at the same time in hours. Increase throughput with the stacking and nesting capability and select the draft printing mode (monochrome) to print up to 35% faster.

Low Part Cost

Based on reliable and affordable ColorJet Printing (CJP) technology, the ProJet CJP 860Pro prints parts at up to 7x lower cost than other technologies. Featuring efficient material use, you will eliminate waste and reduce finishing time as no supports are necessary and the unused core material is recycled. This ColorJet printer requires only minimal training and expertise to generate a consistent, satisfying output every time.

APPLICATIONS

  • Concept modeling
    • Communication, sales and marketing models
    • Rapid design iteration

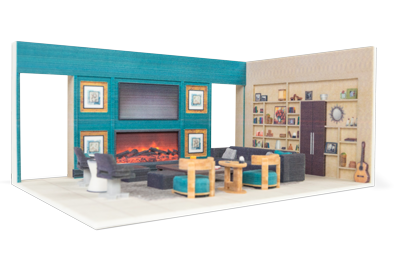

    • Display/Art models
  • Simulation models
    • Surgery practice

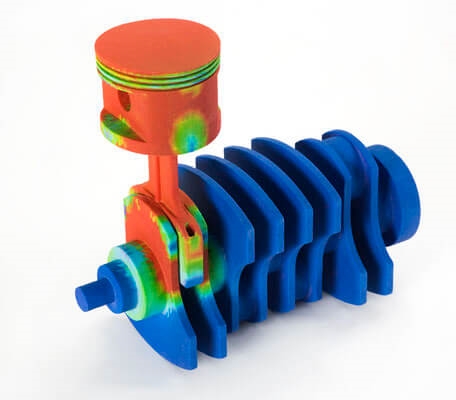

    • FEA analysis
    • Assemblies visualization
    • Ergonomics
  • Color and texture validation

BENEFITS

  • Unique professional quality, full CMYK color 3D printing
  • Fast print speed
  • Generous build volume for large capacity
  • Low operating costs
  • Safe and eco-friendly
  • Easy post-processing with no supports to remove
  • Choose from a range of part finishing options to meet your application requirements

TECH SPECS

  • ColorJet Printing technology
  • Max build envelope capacity (W x D x H): 20 x 15 x 9 in (508 x 381 x 229 mm)
  • Full CMYK color 3D Printer
  • High resolution and fine features
  • Using natural products based build materials
  • Supported by 3D Sprint® software as virtual print volume for file preparation and coloring
  • Supported by 3DPrint software for printing
    Fast and safe cleaning of your printed models with the cleaning station (optional)
  • Effective, safe and easy models infiltration with the down-draft workbench (optional)

3D Printing Technology Full Color (CJP)
Build Volume 508 x 381 x 229 mm
Layer Height 0.1 mm
Material Compatibility VisiJet PXL
Material Compatibility VisiJet PXL
Colors and materials per print Full CMYK Color
Material Compatibility PLA / Tough PLA / PETG
Supported File Formats STL, VRML, PLY, 3DS, FBX, ZPR
