Introduction

Metal additive manufacturing is widely used in universities and research institutions as a research tool rather than a production system. Academic environments use metal AM systems to study materials, processes, and manufacturing concepts under controlled conditions. Typical use cases include alloy development, process parameter research, topology optimization, simulation validation, and hybrid manufacturing workflows that combine additive and subtractive technologies.

The systems we offer are installed in universities, applied research centers, and collaborative laboratories across multiple countries. These installations are used for long-term research programs, doctoral projects, feasibility studies, and joint industry–academia initiatives. The machines are operated as open research platforms, allowing researchers to adjust parameters, test non-standard materials, and integrate the systems into broader manufacturing research infrastructures.

This page describes how universities use ZRapid Metal AM systems, the technical characteristics required in academic environments, and examples of current installations in higher education and research institutions.

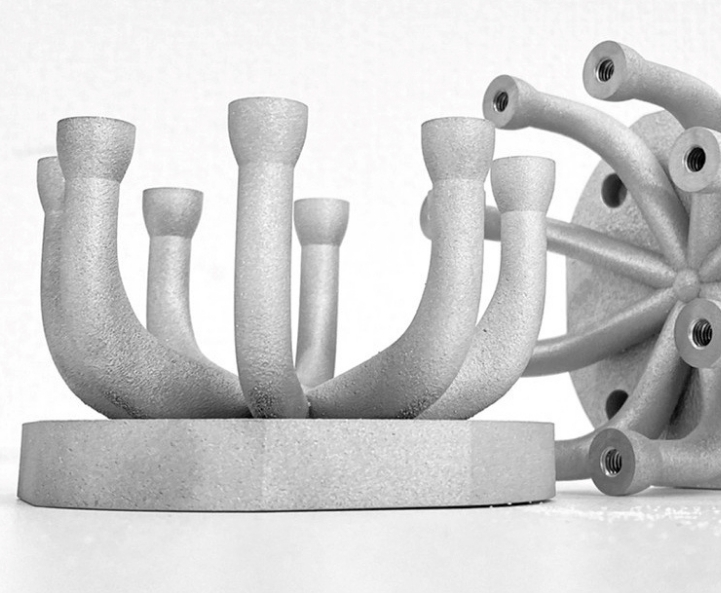

Picture for category Χρήση της Προσθετικής Κατασκευής Μετάλλων στην Ακαδημαϊκή Έρευνα

Use of Metal AM in Academic Research

Universities approach metal additive manufacturing differently from industrial production environments. Research focuses on understanding and developing processes rather than producing parts at scale. Machines are expected to operate consistently over long research cycles, support frequent configuration changes, and allow full access to process variables.

Common research activities include material characterization, parameter development, investigation of thermal behavior, and validation of simulation models. In many cases, the same machine is used for small experimental builds and for larger functional demonstrators or collaborative projects with industrial partners.

Metal AM systems in academic settings must therefore support frequent material changes, flexible build configurations, and repeatable process conditions.

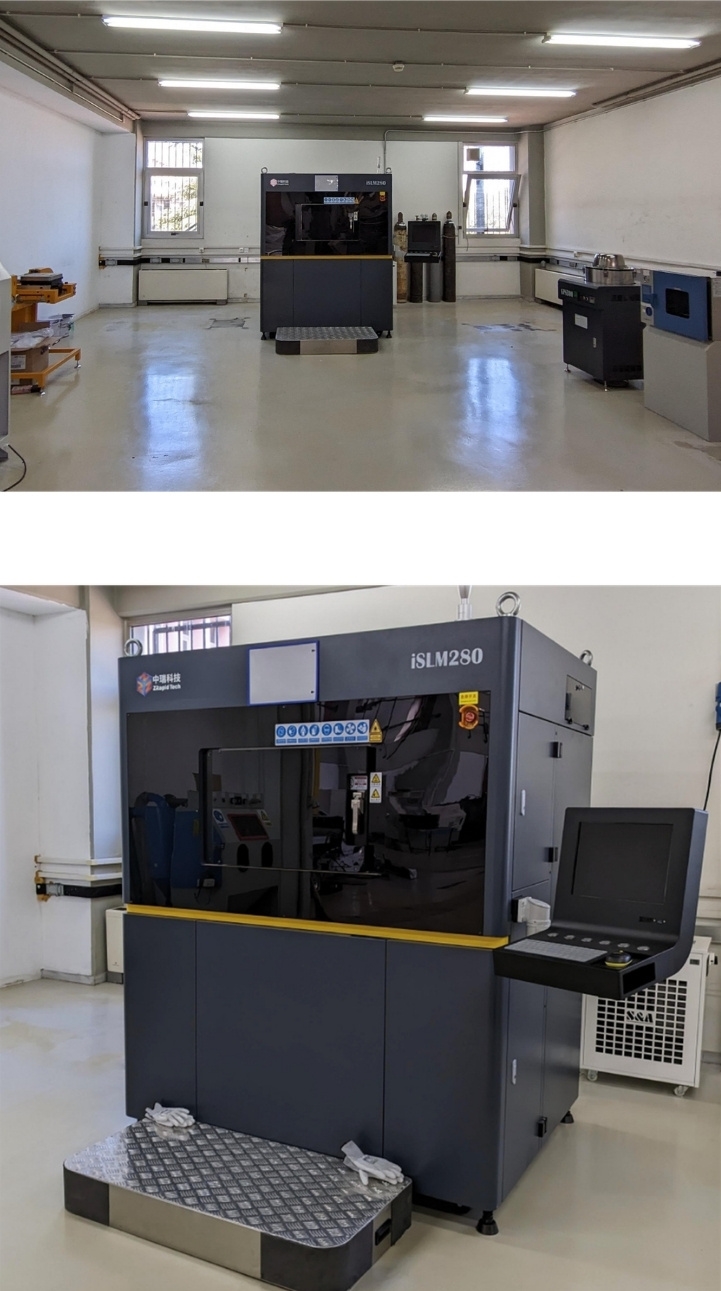

Picture for category Τεχνικές Απαιτήσεις σε Πανεπιστημιακά Περιβάλλοντα

Technical Requirements in University Environments

Process Access and Parameter Control

Academic research requires full access to machine parameters. Researchers work with laser power, scan speed, hatch distance, layer thickness, scanning strategies, and thermal control settings. These parameters are adjusted systematically to study their influence on microstructure, density, residual stress, and mechanical properties.

Closed systems with fixed parameter sets are not suitable for this type of work. Our machines are used in environments where parameter development is part of the research itself, and where experimental results must be traceable and reproducible over time. This is possible because all machines are open-parameter and open-material systems.

Flexible Build Volume Configuration

Research projects often begin with small test specimens or parameter matrices. Later stages may require larger components for functional testing or demonstration purposes. Using a full build volume for early-stage research can be inefficient in terms of time and material consumption.

The Industrial Metal 3D Printer ANiMA A1 comes equipped with the Build Volume Reducer (BVR), which allows researchers to adapt the machine configuration to the experiment. Small build volumes reduce powder usage and shorten iteration cycles. Full build volumes remain available when required for larger parts.

This flexibility is particularly important in material research, where powder availability may be limited and frequent alloy changes are common.

Powder Handling and Material Changeover

Universities frequently work with experimental powders, including newly developed alloys or recycled materials. Efficient powder handling and controlled material changeover are necessary to avoid cross-contamination and to maintain experimental validity.

The ability to isolate experiments, clean the system effectively, and switch materials without extensive downtime is a practical requirement in academic laboratories.

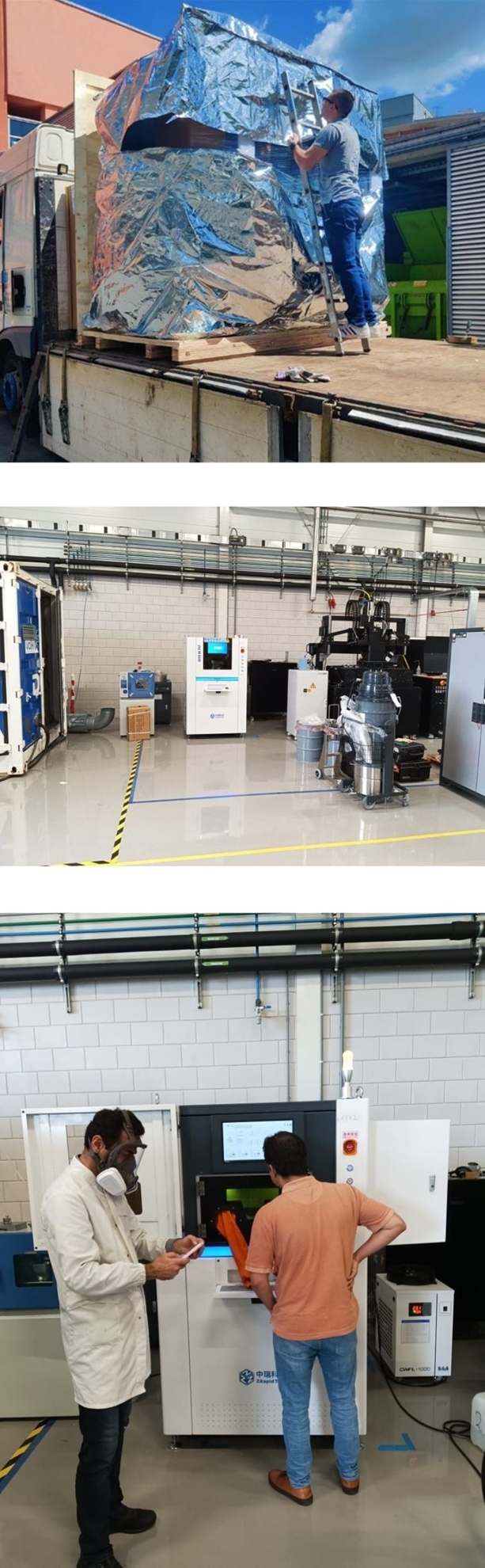

Picture for category Πεδία Εφαρμογής της Έρευνας

Research Application Areas

Material Development and Alloy Research

One of the primary uses of metal additive manufacturing in universities is alloy development. Researchers investigate compositions optimized for additive manufacturing conditions, focusing on solidification behavior, cracking resistance, phase formation, and microstructural control.

At the University of Twente, research teams focus on developing new materials specifically for additive manufacturing and have already produced dozens of experimental alloys. Such work requires a stable and predictable process environment where changes in material behavior can be attributed to controlled parameter variations rather than machine inconsistencies.

ZRapid machines are used in these projects as experimental platforms, supporting repeated builds with controlled conditions over extended research timelines.

Sustainable Manufacturing and Material Reuse

Sustainability research has become an important topic in academic additive manufacturing. Universities study ways to reduce material waste, reuse feedstock, and integrate additive manufacturing into circular material flows.

At TU Delft, researchers have worked with stainless steel scrap, converting it into powder using atomization processes and reusing it for additive manufacturing. This type of research places specific demands on the AM system, as recycled powders may differ from standard commercial feedstock in particle morphology and size distribution.

Metal AM systems used in such projects must allow parameter tuning and process adaptation to accommodate non-standard materials. This type of work is not compatible with closed or heavily restricted systems.

Process Research, Simulation, and AI

Many universities combine additive manufacturing with simulation and data-driven research. AM systems are used as experimental platforms to generate data for thermal models, mechanical simulations, and machine learning algorithms.

At the KSF Institute for Advanced Manufacturing at Hochschule Furtwangen University, additive manufacturing is integrated into a broader research structure that includes machining technology, grinding and fine machining, EDM and laser processing, and AI-based manufacturing systems. The AM system provides experimental data that feeds into simulation models and adaptive control research.

In these environments, consistency and data traceability are critical. Machines must behave predictably so that simulation results can be validated against physical builds.

Medical and Biomedical Research

Universities and affiliated hospitals use metal additive manufacturing for medical research, particularly in orthopedics. Applications include the development of implant designs, surface structures, and patient-specific components.

At Friedrich Schiller University Jena, the iSLM280 is used in research related to hip and knee replacement technologies in cooperation with Jena University Hospital. These applications require stable process conditions, dimensional accuracy, and consistent material quality, as research results often feed into clinical studies or regulatory processes.

Medical research projects typically span multiple years and rely on machines that can maintain consistent performance over long periods.

Education and Training

Metal AM systems in universities are also used for education. Students and doctoral researchers gain direct experience with machine operation, parameter development, build preparation, post-processing, and inspection.

These installations contribute to workforce development by training engineers who later work in industrial additive manufacturing environments. Familiarity with open, research-oriented systems influences how these engineers approach AM in their professional careers.

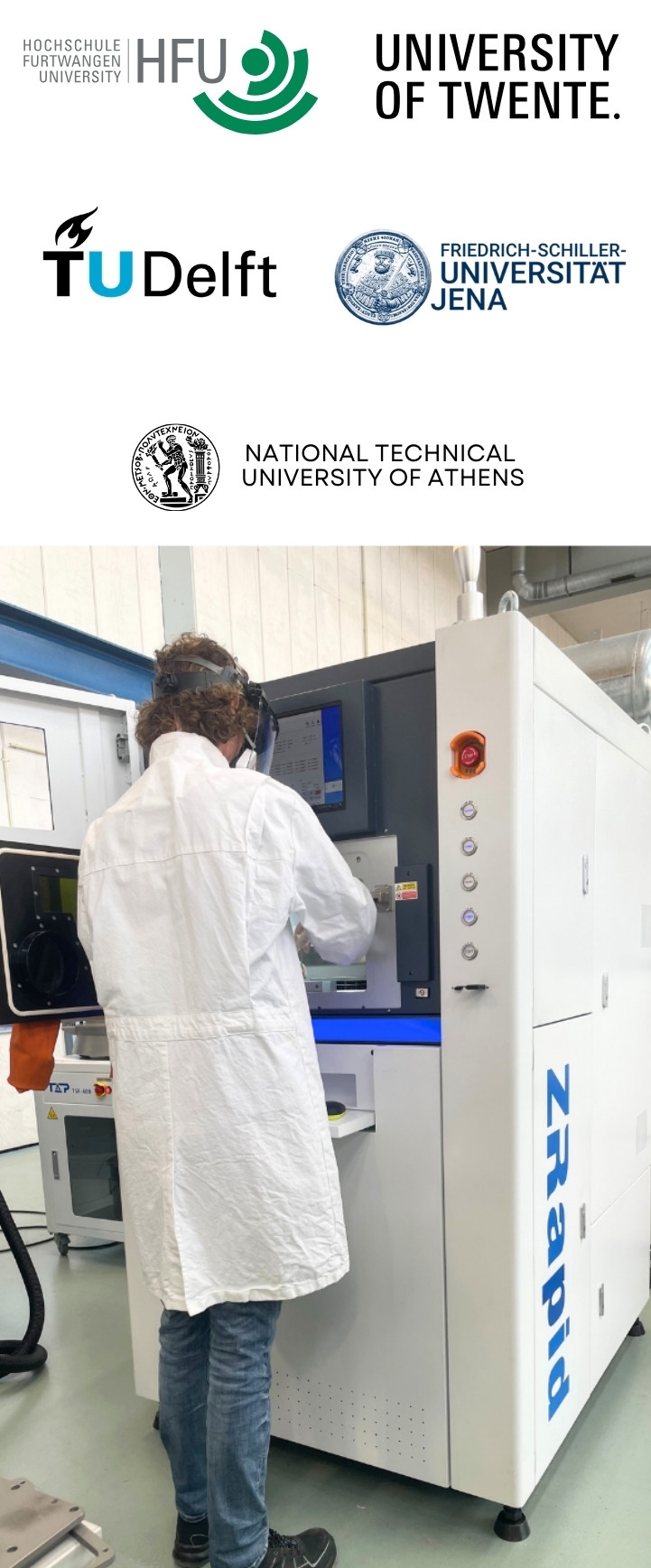

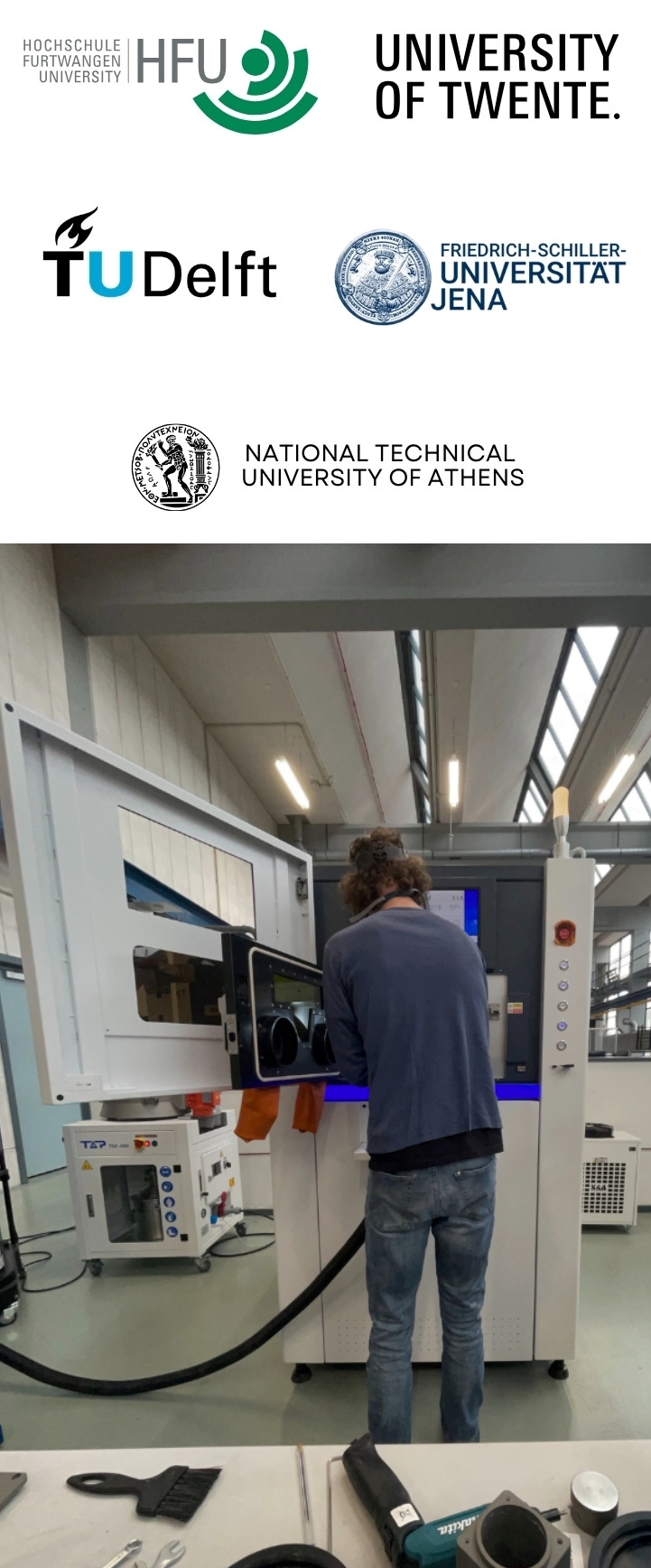

Picture for category Παραδείγματα Εγκαταστάσεων σε Πανεπιστήμια

Examples of University Installations

Hochschule Furtwangen University

KSF – Institute for Advanced Manufacturing

Machine: iSLM160 Ultimate

The KSF Institute conducts research in machining technology, grinding and fine machining, EDM and laser processing, additive manufacturing, and AI-driven manufacturing systems. The iSLM160 supports experimental work across multiple research groups, particularly in material research and hybrid manufacturing workflows.
