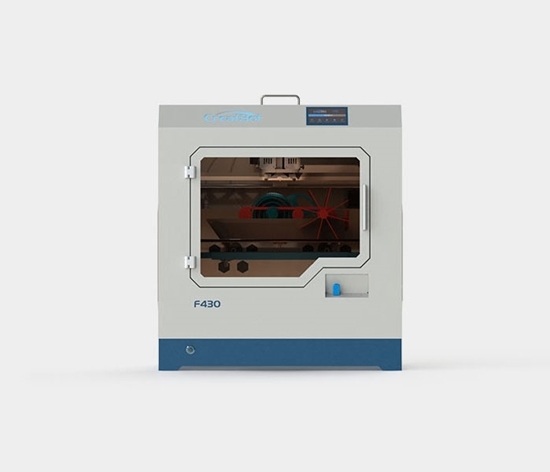

CreatBot F430

The most reliable flagship 3D printer suitable for multiple grades of materials. CreatBot F430 is a powerful 3D printer with one of the most advanced desktop 3D technology. CreatBot F430 provides solutions for every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.
Available upon request
From 3.650,00 €
*Net Price
3D Printing Technology
Build Volume

Main Advantages

  • Big Build Volume (400*300*300mm)
  • High Resolution (0.04mm)
  • Heat Control System

- Hotend 260°C+420°C
- Hot Bed 120°C
- Hot Chamber 70°C

  • Reliable (run 24/7)
  • Compatible Filaments:

- Consumer-grade: PLA, ABS, PET-G, HIPS, PVA,etc
- Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc
- High Performance: Metal Fill, PEEK etc

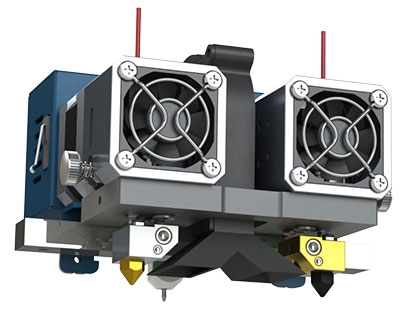

Supports 420°C Hotend

The CreatBot F430 is equiped with dual extruders:

The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc.

The right 420°C hotend is made of martensite steel, which is able to print high performance material like PEEK, ULTEM, etc.

The dual hotend is replaceable, which provide more possibility on your application.

Picture for category Θερμοκρασία κεφαλής έως και 420°C

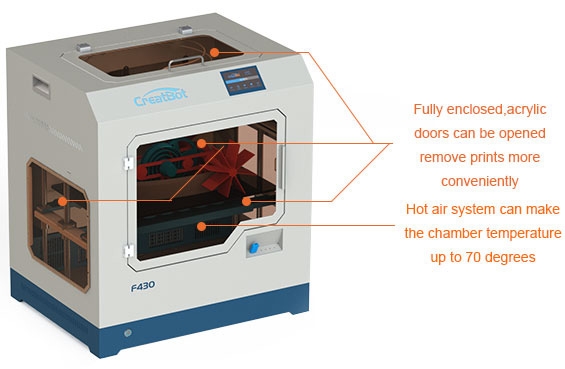

Fully Enclosed & Hot Chamber at 70°C

  • Fully enclosed chamber can block all external interfernce and reduce noise.
  • Hot chamber device provide constant room temperature 70°C,which is able to prevent prints from warping and deform.

Picture for category Fully Enclosed & Hot Chamber at 70°C

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data.

Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.

The printer will avoid invalid printing by stoping print and warning when filament runs out.

Picture for category Outage Restored & Filament Detection

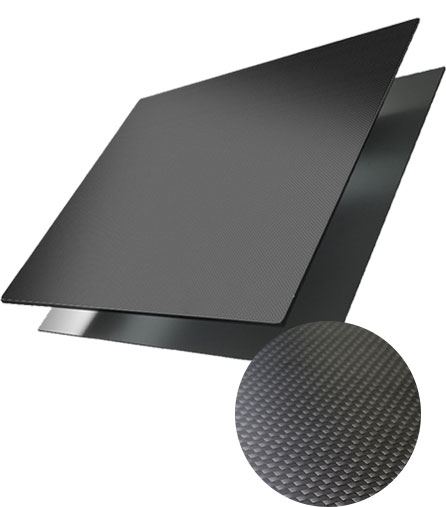

Print Platform

Glass-Ceramic Platform + Carbon Fiber Sheet

The printer has a heatable glass-ceramic platform and a carbon fiber sheet cover.

The glass-ceramic base has high thermal efficiency and best low-expansion coefficient, so it doesn't deform when heating or cooling.

Heat can be distributed efficiently through the Carbon fiber sheet, which is tough but also removable. Most materials can be extruded directly to the bed and will stick very well.

Picture for category Print Platform
Filament Diameter 1.75mm
Build Volume 400*300*300mm
Number of Print Heads 2
Maximum Nozzle Temperature 420 ℃
Material Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Ακρίβεια Τοποθέτησης στον άξονα Ζ 1.25 μm
X/Y Axis Positioning Precision 12.7 μm
Operating Systems Win7/8/10, MacOS
Supported File Formats STL,OBJ,AMF
Packing Dimensions & Weight (Gross) 750x580x720 mm | 62 kg
