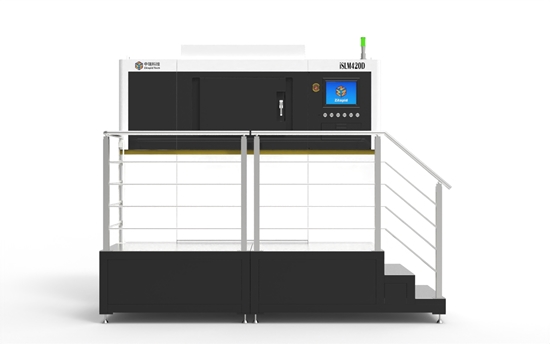

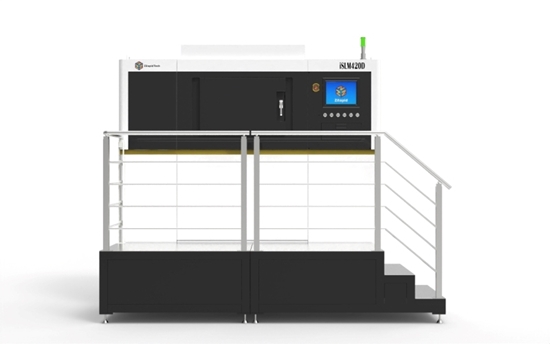

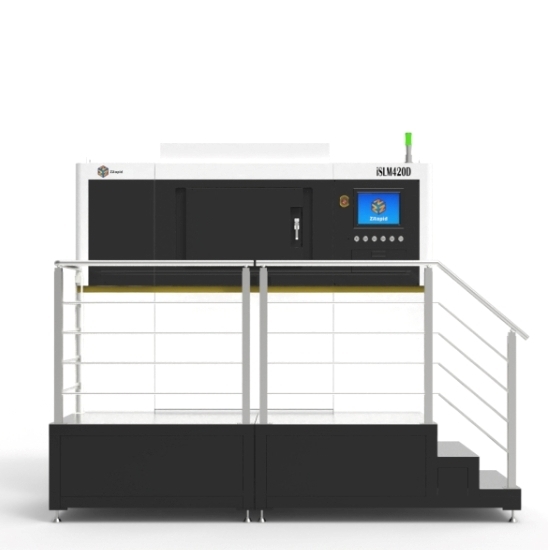

iSLM420D

iSLM420D is an industrial grade metal 3D Printer, especially suitable for custom manufacturing of single or small batch functional parts with extremely large building plate. Compatible with a wide range of materials for various applications and significant printing capabilities. Ideal for those who want to print extremely large detailed objects with complex geometric shapes.
3D Printing Technology
Selective Laser Melting (SLM)

Building Functional Metal Parts

The printer excels in directly producing functional complex geometric parts such as snap-fit or loose joint hinges, offering versatility and precision in its output. It accommodates a wide range of materials, including metal powders that can be single metals or alloys, providing flexibility to meet various application requirements.

Particularly suitable for manufacturing single parts or small batches of functional components, it caters to diverse industries including industrial production, prototyping, research, dental, and medical fields. With its ability to deliver intricate and high-quality prints efficiently, the printer serves as an indispensable tool for producing critical parts and prototypes with exceptional accuracy and reliability.

Picture for category Building Functional Metal Parts

Printing in SLM

SLM is a 3D printing technology that uses metallic powder to print metal objects instantly.

During printing, a coating mechanism (the recoater) spreads a layer of metallic powder on the printing plate and a powerful laser beam selectively melts the powder of the current layer. After the fusion is complete, the printing platform is moved down one layer, and the process is repeated until the entire object is fused. The whole process is carried out in a chamber, with a shielding gas, to prevent the metal from reacting with other gases at high temperatures.

The main advantage of SLM technology is that it offers many new options in manufacturing metal parts, such as geometric freedom in design, weight reduction, flexibility in prototyping, and speed in producing metal objects in small quantities.

Picture for category Printing in SLM
Laser Type Fiber laser × 2
Laser Wavelength 1064nm
Laser Power 500W × 2
Process bi-directional scraper paving
Normal Build 0.05mm
Quick Build 0.05~0.15mm
Precision Build 0.02~0.05mm
Beam (diameter@1/e2) 0.06~0.20mm
Scanning Galvanometer High Speed Scanning Galvanometer × 2
Parts Scanning Speed 1.0~4.0m/s (recommended)
Blank Jumping Speed 10.0~20.0m/s (recommended)
Reference Building Speed 15~50cm³/h
Protective gas N2 / Ar (Active metal materials must be protected with Ar)
Flow Control 0~3 L/min intellient adjustment
Build Vat Volume Approx. 80L
XY Platform 420mm(X) × 420mm(Y) (Screw hole, rounded, etc. are not calculated)
Z Axis 500mm (Z height includes thickness of build plate)
Max Weight 150kg
Build Vat Type Precision resistor heater
Materials Stainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
Network Ethernet, TCP/IP, IEEE802.3
Control Software iSLM (Presto SLM)
Data Preparation Software 3dLayer
Data Interface CLI file, SLC file, STL file
Power 380V(±10%) AC 50/60Hz, three-phase, 3/15A
Ambient Temperature 20-26ºC
Relative Humidity Less than 40%, non-condensing
Installation Condition Size 2.65m(W)×1.45m(D)×2.70m(H)
Installation Condition Weight Approx. 2800kg (Climbing platform not included)
Warranty Laser: 5000 hours or 12 months (whichever comes first) Main Machine: 12 months from installation date
