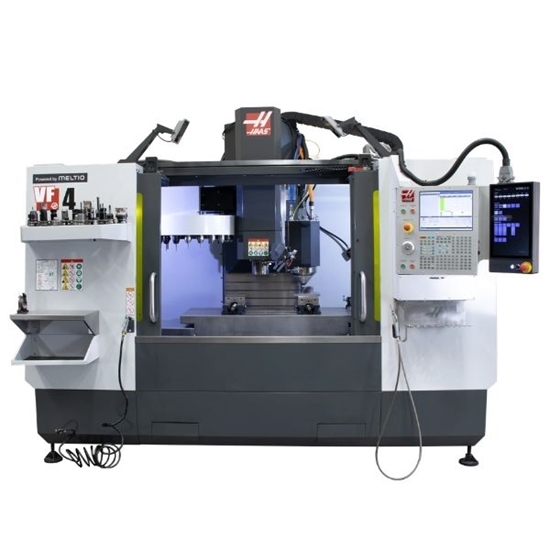

Meltio Engine CNC Integration

Turn a vertical machining centre into a hybrid metal manufacturing system with the Meltio Engine. Combine metal 3D printing and CNC machining to produce complex parts in a single setup.

Meltio Engine CNC Integration Technical Datasheet

Request a quote

Laser Metal Deposition (LMD)

1.0/1.4 kW 9 x 450 nm direct diode lasers

Description

Overview

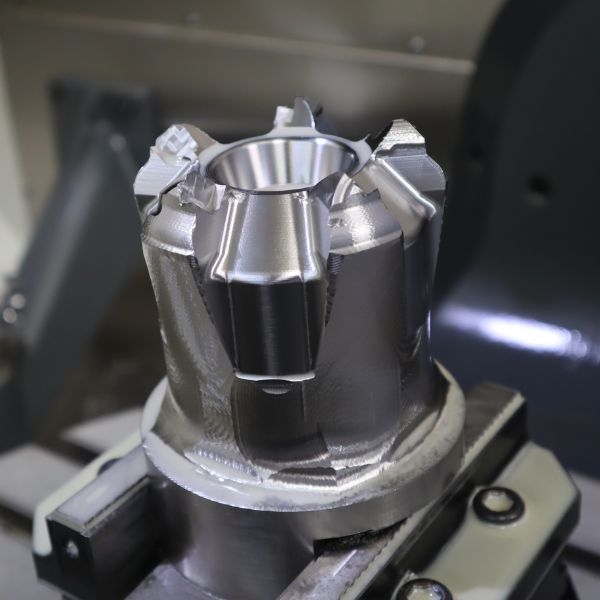

The Meltio Engine Integration Kit enables metal 3D printing for near-net-shape production, part repair, and the addition of features to existing components.

Hybrid manufacturing

Combine metal 3D printing and CNC machining in a single setup to produce complex parts with precise machined features.

Geometry freedom

Produce large metal parts with no fixed build volume. The maximum part size is determined by the working range of the motion system.

Retrofitting

Add metal 3D printing to a CNC machine with the Meltio Engine, creating a hybrid manufacturing system that combines metal deposition and machining.

Part repair

Repair and upgrade metal components cost-effectively with metal 3D printing, adding material or new features to existing parts.

3D Printing Technology	Laser Metal Deposition (LMD)
Laser System	1.0/1.4 kW 9 x 450 nm direct diode lasers
Printhead	Mounted on the right side of the spindle 32.5 to 35 kg
Printhead Retracted Size (WxDxH)	280 x 332 x 684 mm
Printhead Unretracted Size (WxDxH)	280 x 332 x 943 mm
Control Unit	Wall mounted, air-cooled 80.5 kg 600 x 300 x 800 mm
Human Machine Interface	Wall mounted 17” tactile screen
Cooling	Water-cooled deposition head. Chiller Included
Software	Meltio relies on its Software Partners Ecosystem for the Hybrid process, including additive and subtractive
Print Envelope (WxDxH)	Depending on the Machining Center
Feeder System	Quad-point traction servo feeders, frictionless liners
Process Control	Melt Pool Camera & Closed-loop wire modulation
Power Input	200/240 V 3W+PE 380/415 V 3W+N+PE
Power Consumption	9.2 kW peak 1.0 / 1.4 kW avg cons: 3.93 / 4.56 kW
Wire Feedstock	Diameter: 0.8-1.2 mm / Spool Type: BS300 External wire drum ready
Product Configurations	Single or Dual Wire
Materials	Stainless Steels, Carbon Steels, Tool Steels, Nickel Alloys, Titanium, Copper Alloys, Gold alloys and more
