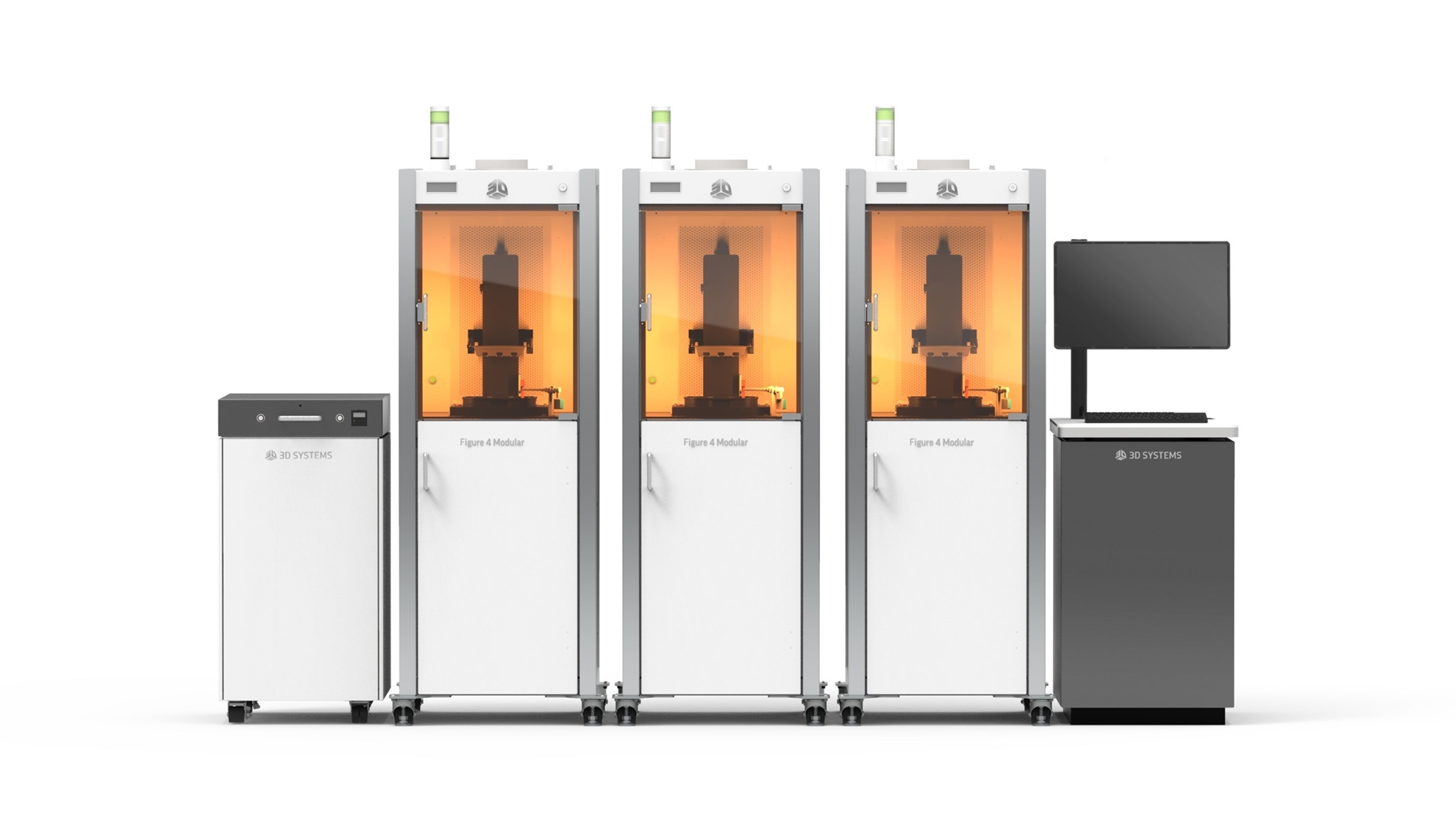

Figure 4 Modular

Scalable, semi-automated 3D manufacturing solution designed to grow with your prototyping and production needs
Call for pricing
3D Printing Technology
Figure 4
Build Volume
124.8 x 70.0 x 346 mm
Layer Height
10 – 100 microns
Ανάλυση X/Y
1920 x 1080 pixel - 65 microns

Figure 4 Modular

Figure 4® Modular is a scalable, semi-automated 3D production solution that grows with your business, enabling capacity to meet your present and future needs, up to 10,000 parts per month, for unprecedented manufacturing agility. With expandable capacity up to 24 print engines, automated job management and queuing, automated material delivery, and centralized post-processing, Figure 4 Modular’s end-to-end digital manufacturing workflow is ideal for low to mid volume production and bridge manufacturing. In addition, each printer can run different materials and different jobs as part of a single high throughput line serving a multitude of parts being produced.


Modular Scalability

The base configuration of Figure 4 Modular is comprised of a single printer and a central controller. This can be easily scaled to up to 24 printer modules on a single controller, with layout configuration flexibility, empowering production to rapidly multiply without disruption to the shop floor.

Low Total Cost of Operations

Figure 4 Modular enables companies to move directly into manufacturing from a digital CAD file, bypassing tooling costs and delays to start delivering final parts immediately. This semi-automated solution reduces labor through automated job management and queuing, and an automated material feed system.

Unparalleled Flexibility

Figure 4 Modular’s individual printers enable simultaneous production of a wide variety of part sizes and shapes, in multiple materials for a diverse range of parts for production and prototyping.

End-to-End Productivity

Fast and easy print jobs preparation, ultra-fast print speeds, post-curing in minutes instead of hours and production management ensure high parts throughput with high accuracy and repeatability.

Broad Range of Materials

3D Systems’ Material Design Center has over 30 years of proven R&D experience and process development expertise. The broad and expanding range of materials available for Figure 4 Modular addresses a wide variety of applications needs, for functional prototyping, direct production of end-use parts, molding and casting, and includes ABS-like, polypropylene-like, rubber-like, heat resistant and biocompatible capable materials.

3D Printing Technology Figure 4
Build Volume 124.8 x 70.0 x 346 mm
Layer Height 10 – 100 microns
Ανάλυση X/Y 1920 x 1080 pixel - 65 microns
Operating Environment 24/7 operation, 5 - 30 oC
Product Weight 98.5 kg (Base unit), 190.5 kg (Auxiliary Printer)
Product Dimensions (WxDxH) 122.6 x 72.9 x 209.1 cm (Base unit), 66.1 x 72.9 x 209.1 cm (Auxiliary Printer)
Free Printing Software YES
