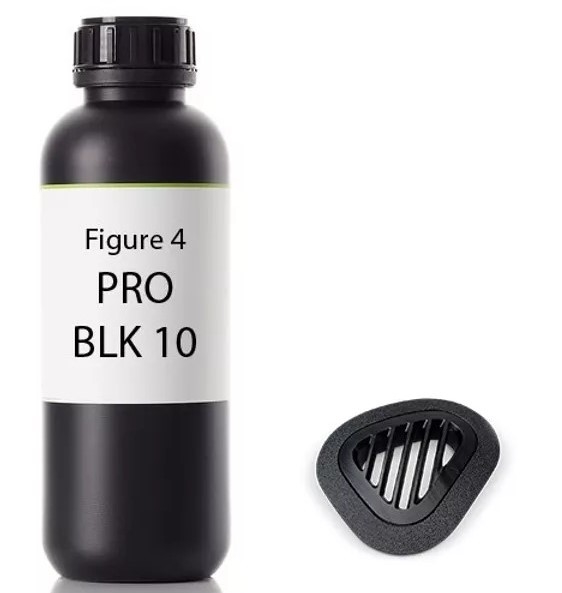

Figure 4 PRO-BLK 10

Production-grade additive manufacturing material with game-changing thermoplastic-like mechanical properties and long-term environmental stability.
219,00 €
*Net Price

Versatile Rigid Heat-Resistant Material Combines Speed, Strength, Excellent Mechanical Properties for Tool-Less, Direct Production of Plastic Parts

Figure 4 PRO-BLK 10 delivers on the promise of additive manufacturing with true direct digital production of plastic parts. Go from CAD to manufacturing line in one day with tool-less, same day part production. With a fast print speed and simplified post-processing that includes a single curing cycle and single solvent cleaning, this material delivers exceptional throughput. It is a high precision resin producing parts with a smooth surface finish and sidewall quality, and has excellent mechanical properties and long-term environmental stability that brings a new level of assurance to 3D production.

Long term environmental stability

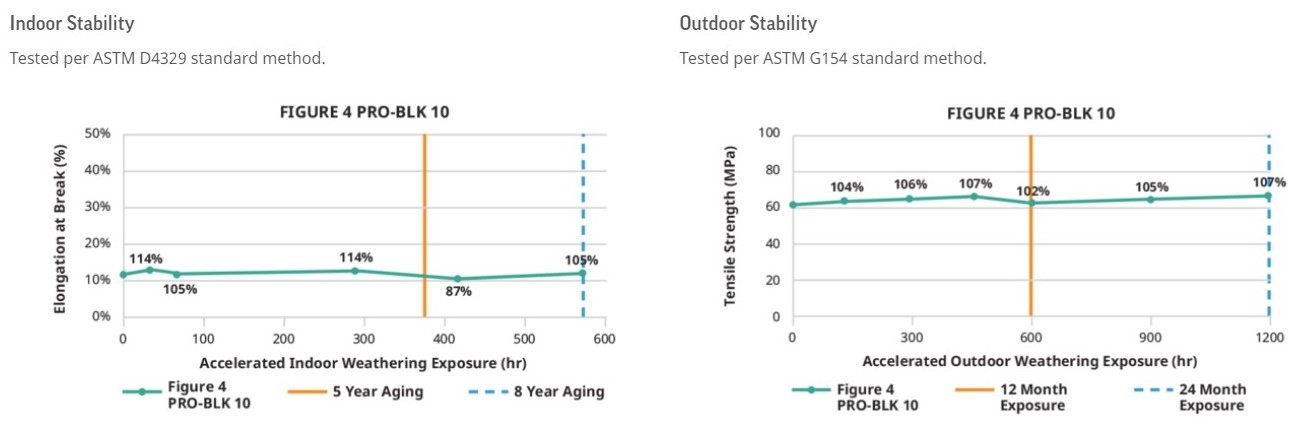

Figure 4 PRO-BLK 10 is engineered to give long term environmental UV and humidity stability. This means the material is tested for the ability to retain a high percent of the initial mechanical properties over a given period of time. This provides real design conditions to consider for the application or part. The chart shows a sampling of the dataset. The full datasheet includes Indoor and Outdoor Stability data for Tensile Strength, Elongation at Break, Tensile Modulus and Impact Strength. Actual data value is on Y-axis, and data points are % of initial value.

Picture for category Long term environmental stability

Chemical and automotive fluid compatibility

The compatibility of a material with hydrocarbons and cleaning chemicals is critical to part application. Figure 4 PRO-BLK 10 parts were tested for sealed and surface contact compatibility per ASTM D543 test conditions and per USCAR2 test conditions. Tensile Strength (MPa) is shown below. The full datasheet includes additional data tables for Tensile Modulus, Elongation at Break and Notched Impact Strength.

Picture for category Chemical and automotive fluid compatibility


  • Applications

    • Tool-less, same day production
    • Direct production of small black plastic parts; examples include: motor housings, connectors, snap-fits, automotive interior and other general-use parts
    • Digital production to replace injection molding or soft tooling processes
  • Benefits

    • Improved environmental stability of mechanical and performance properties over time
    • Fast throughput for part-in-hand with no secondary thermal cure required
    • Simple, single solvent cleaning
    • Excellent surface quality and repeatability
    • Accurate, low distortion material for fast first article print success
  • Features

    • Fast print speed up to 62 mm/hr at 50 micron layer thickness
    • 70 °C heat deflection temperature, 12% elongation at break
    • Durability and strength
    • UL94 HB flammability
    • Biocompatible capable per ISO10993-5 and ISO10993-10
    • Exhibits thermoplastic behavior in necking at tensile break point

Picture for category Overview
